カスタム形状の非アスベスト複合シート シリンダー ヘッド ガスケット シート メーカー - Paidu Group

No.048

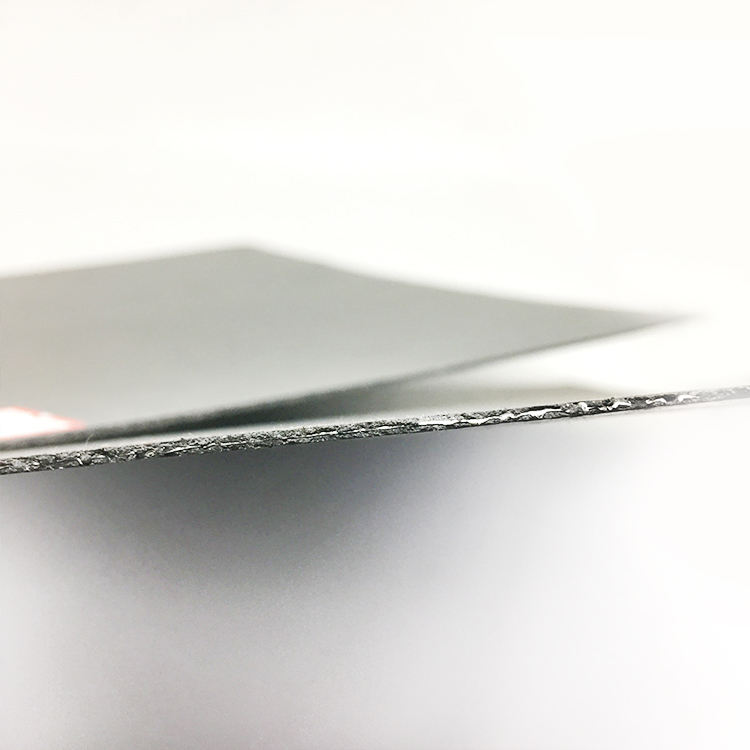

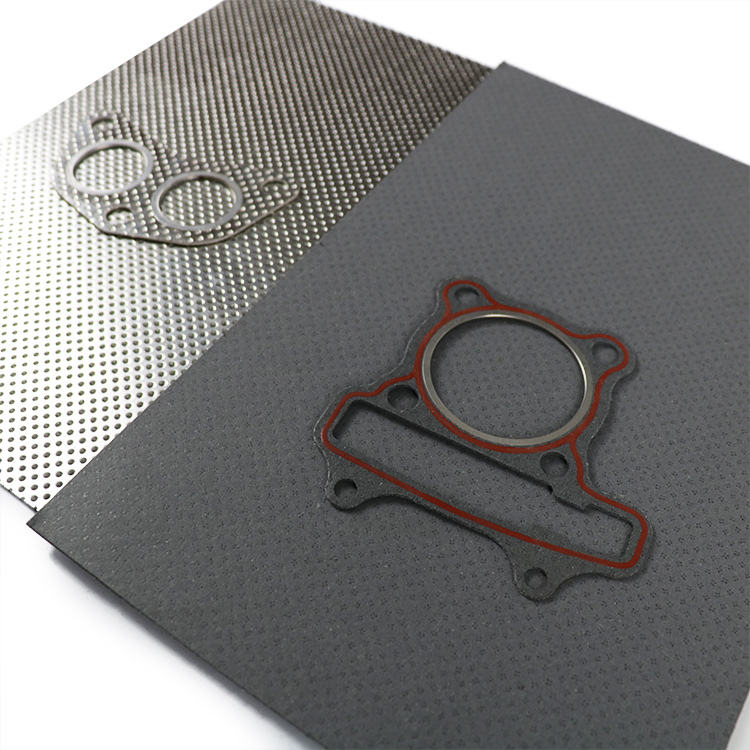

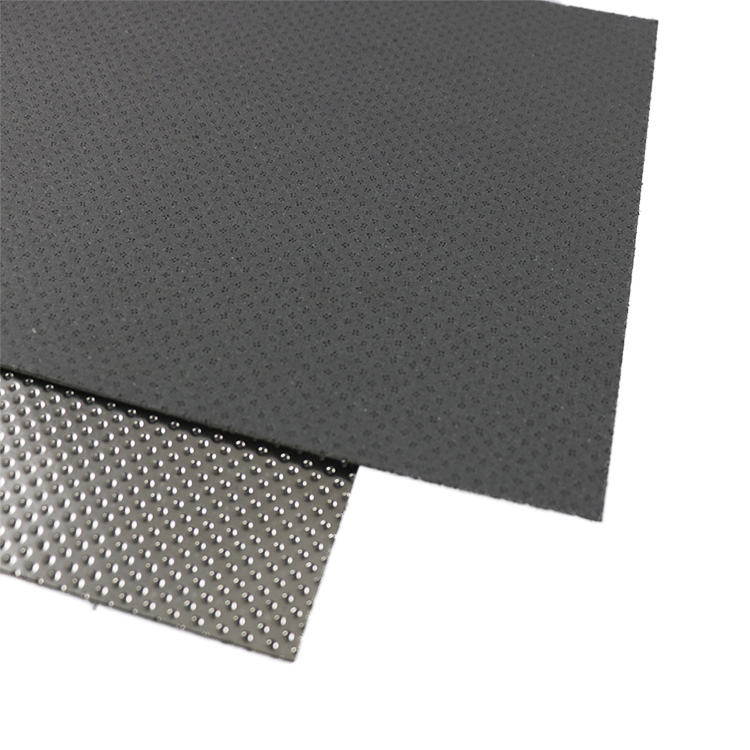

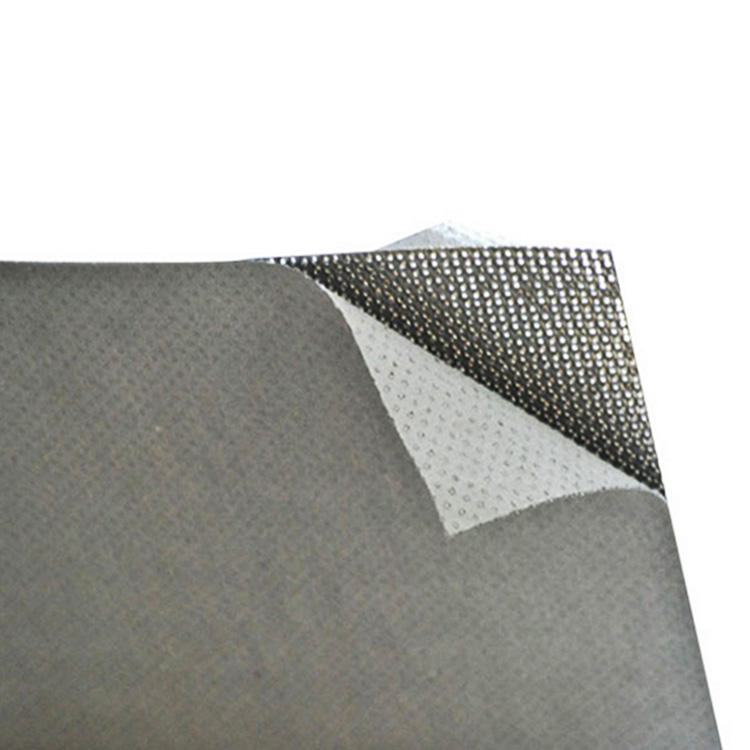

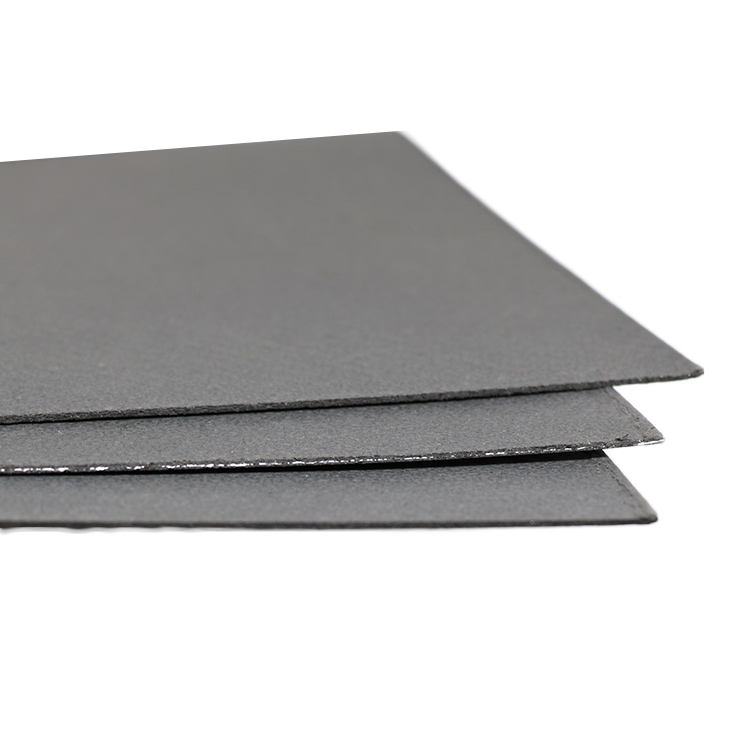

主にビーターペーパーと金属シートを複合させたものです。シリンダーヘッドガスケットの最適な材質です。自動車エンジン、オートバイエンジン、ディーゼル内燃機関等の機械装置に使用されています。このシリーズには次のものが含まれます。 1) 強化複合ガスケットシート (ビーターペーパー+ブリキ+ビーターペーパー) 2) 両サイズコーティンググラファイト強化複合シート 3) 排気済みエンジンガスケットシート (ブリキ+ビーターシート+ブリキ) 4) 両サイズコーティングの強化ノンアスベストシートシリコン(くっつき防止)


$2.80
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
  • Non Asbestos Composite Sheet Cylinder Head Gasket Sheet Manfacturer - Paidu Group
Desciption
製品パラメータ
アイテム
標準データ
密度 ( g/cm3)
1.3~1.5
作業温度 ( ℃)
150~300
圧縮率 ( %)
10±5
回復≥ %
40
シール性能
<0.5cm3/分
腐食性
カスプは錆びていない
抗張力 ( MPa以上)
12.7
圧縮強度 ( MPa以上)
80.0
炭素含有量≥ %
98
灰分含有量<%
1
